Model NO. | 48cavity preform mold | Customized | Customized |
Core and Cavity Material | S136 | Surface Treatment | Polishing |
Software | CAD Ect | Trademark | Yuno |
HS Code | 8480719090 | Cavity Quantity | 48 |
After-sales Service | 1years | Mould Base Material | 4Cr13 |
Exported Area | World wide | Exported Area | Worldwide |
Transport Package | Wooden Packing | Orign | Huangyan Taizhou China |

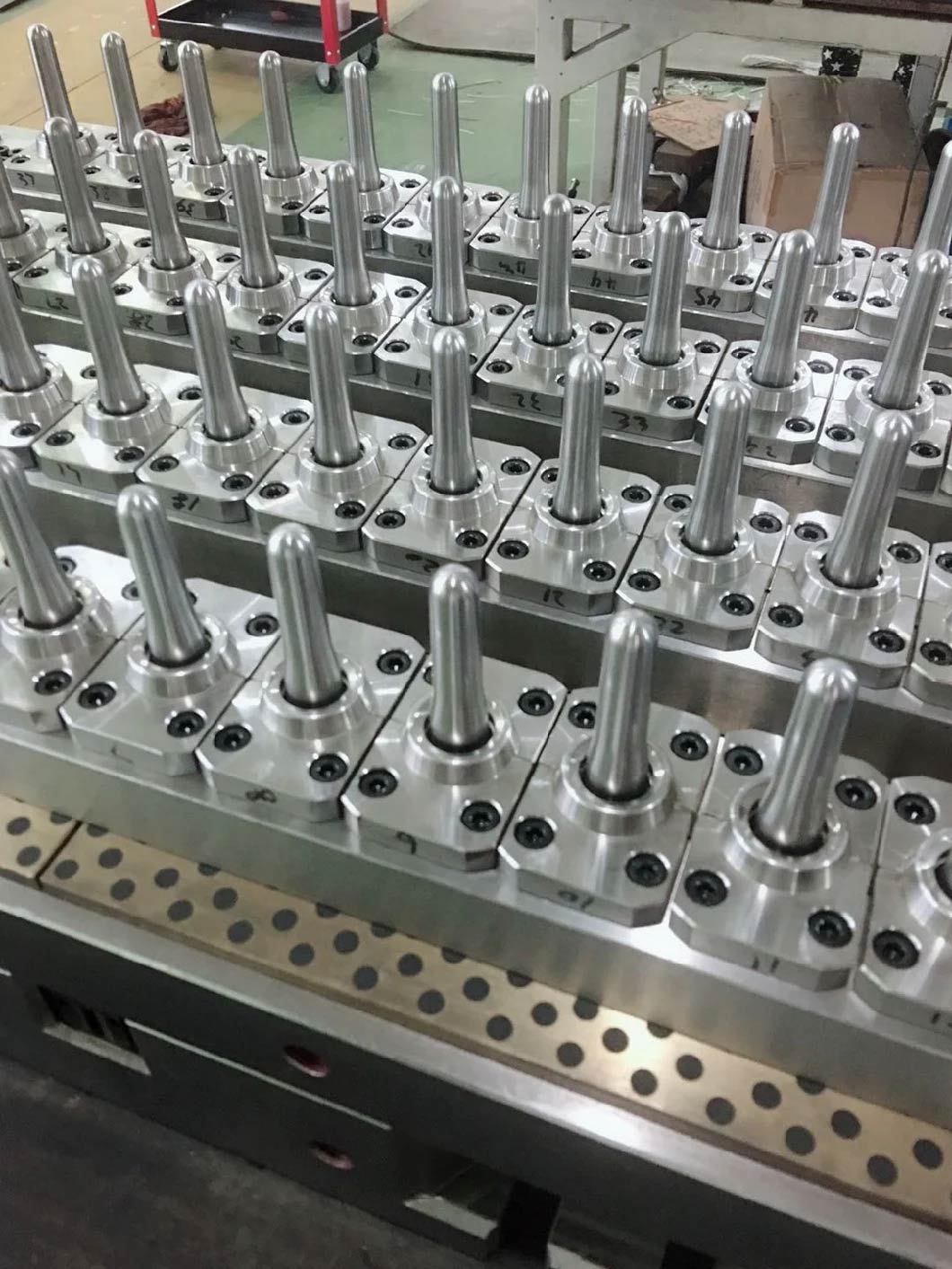

Mold Model：48cavity pet preform mould

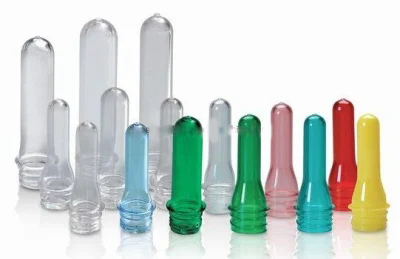

Preform Neck：28mm, 30mm, 38mm
Preform Weight：according to customer's requirement
Runner：Hot runner
Core Material：S136
Cavtiy Material：S136
Screw Neck Material：S136
Mold Base：4CR13 Steel
Mold Size：1080*600*530
Cycle time：different weight with the different cycle time
Mold Life：5millions

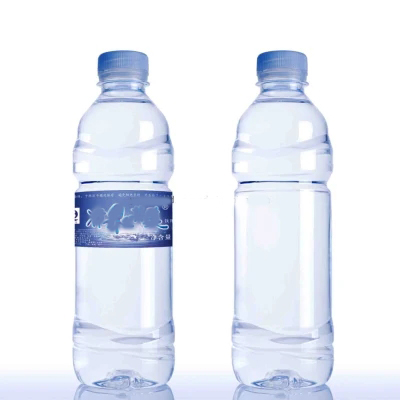

Scope of Application：water bottle
